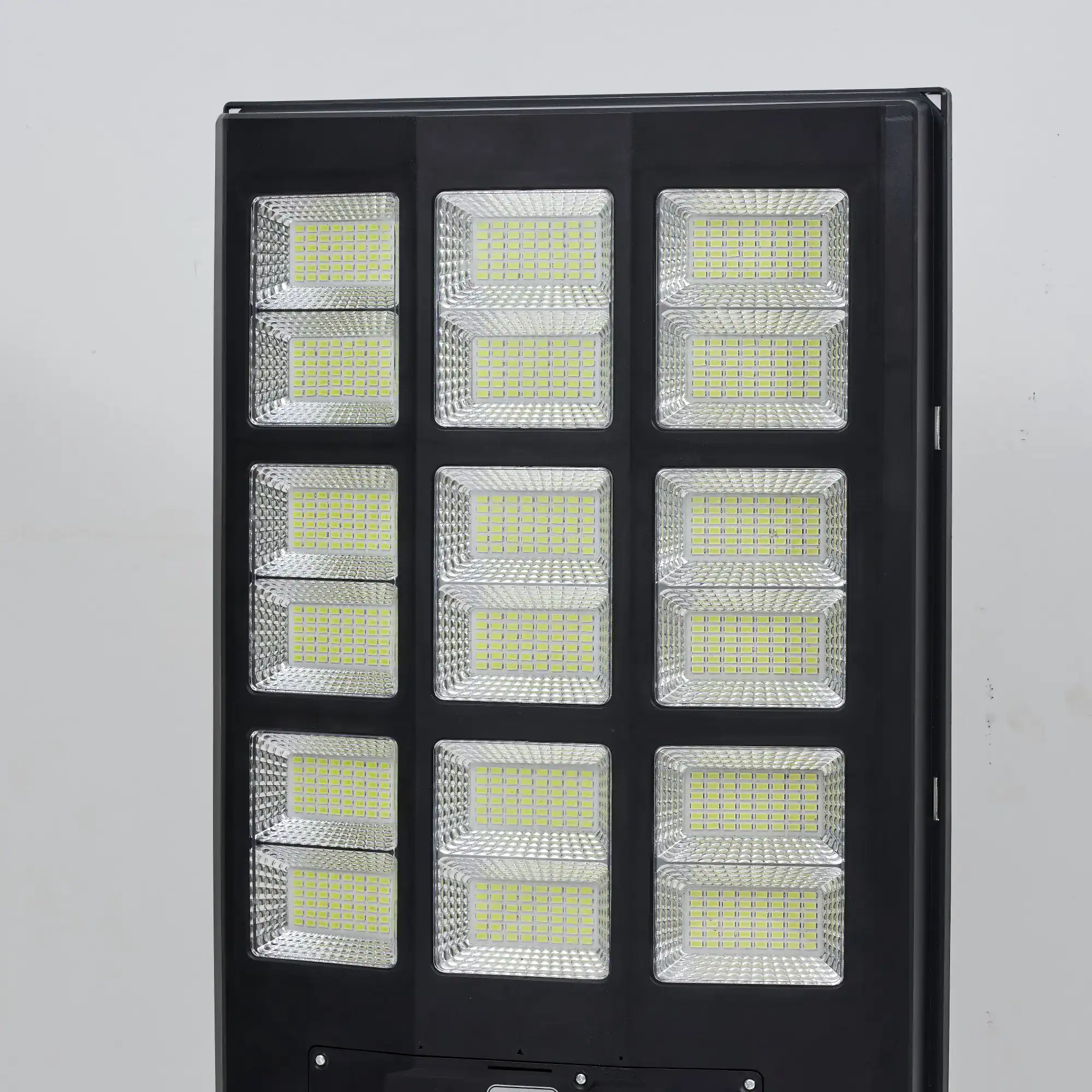

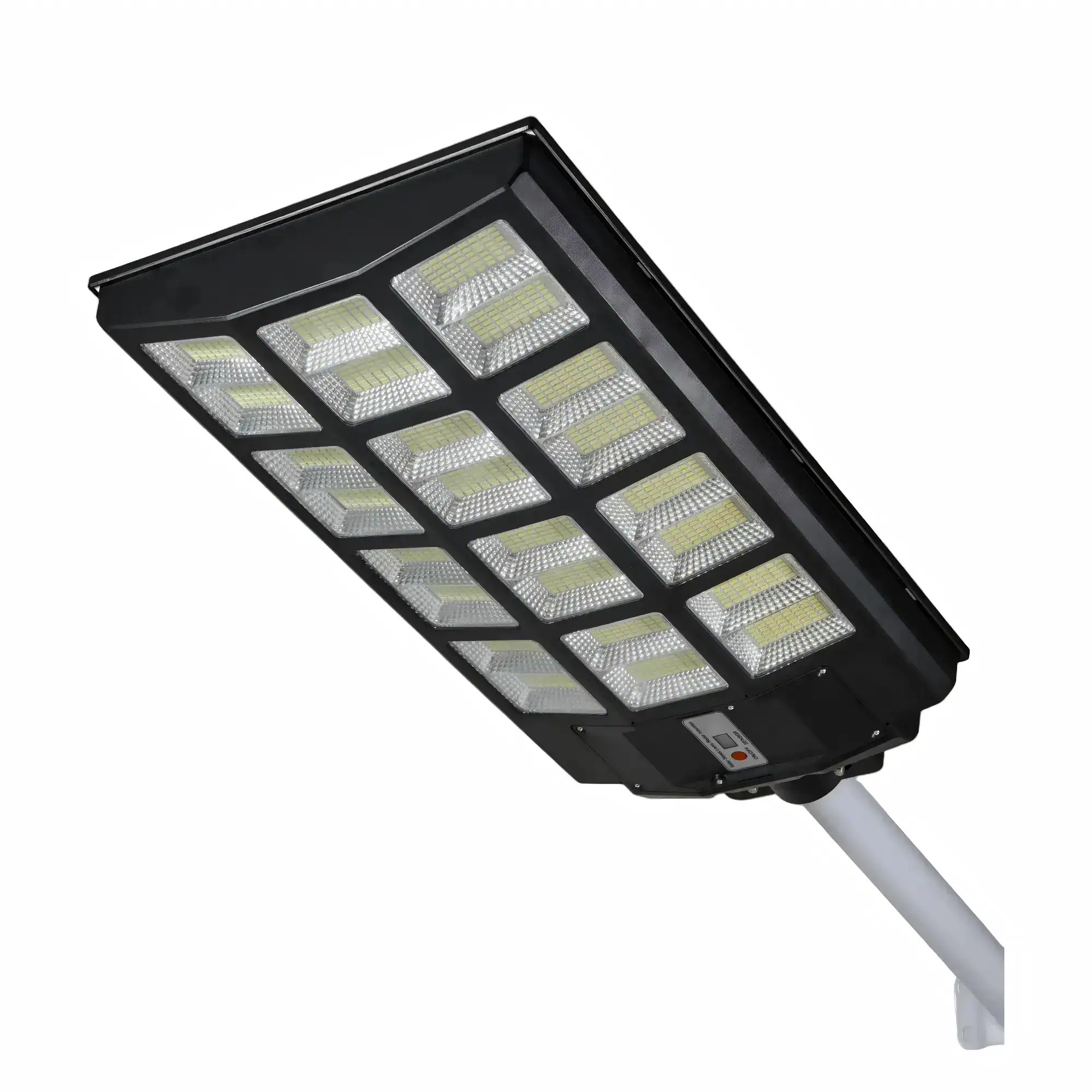

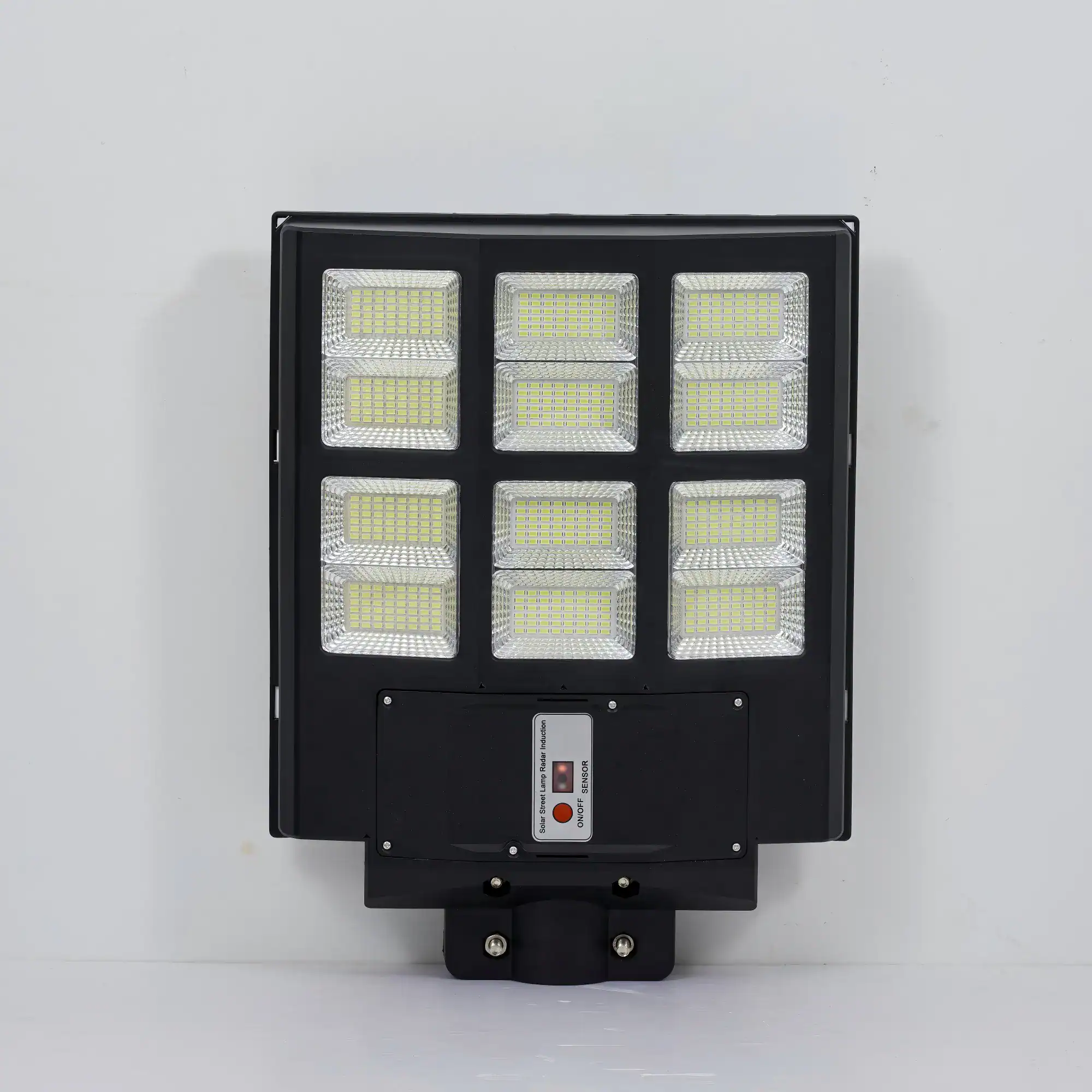

The BM Series Integrated Solar Street Light is a high-performance, multi-head lighting solution engineered for applications demanding exceptional brightness and wide-area coverage. Featuring a distinctive modular design with 6, 9, or 12 independent optical heads, this series delivers powerful illumination across large outdoor spaces—making it ideal for commercial plazas, parking lots, stadiums, and major thoroughfares.

The modular multi-head configuration ensures comprehensive light distribution with minimal shadow areas. Each optical module combines a high-transmittance lens with a precision reflector, creating a dual optical system that maximizes light output while maintaining excellent uniformity. The result is a bright, well-defined beam pattern that covers wide areas efficiently.

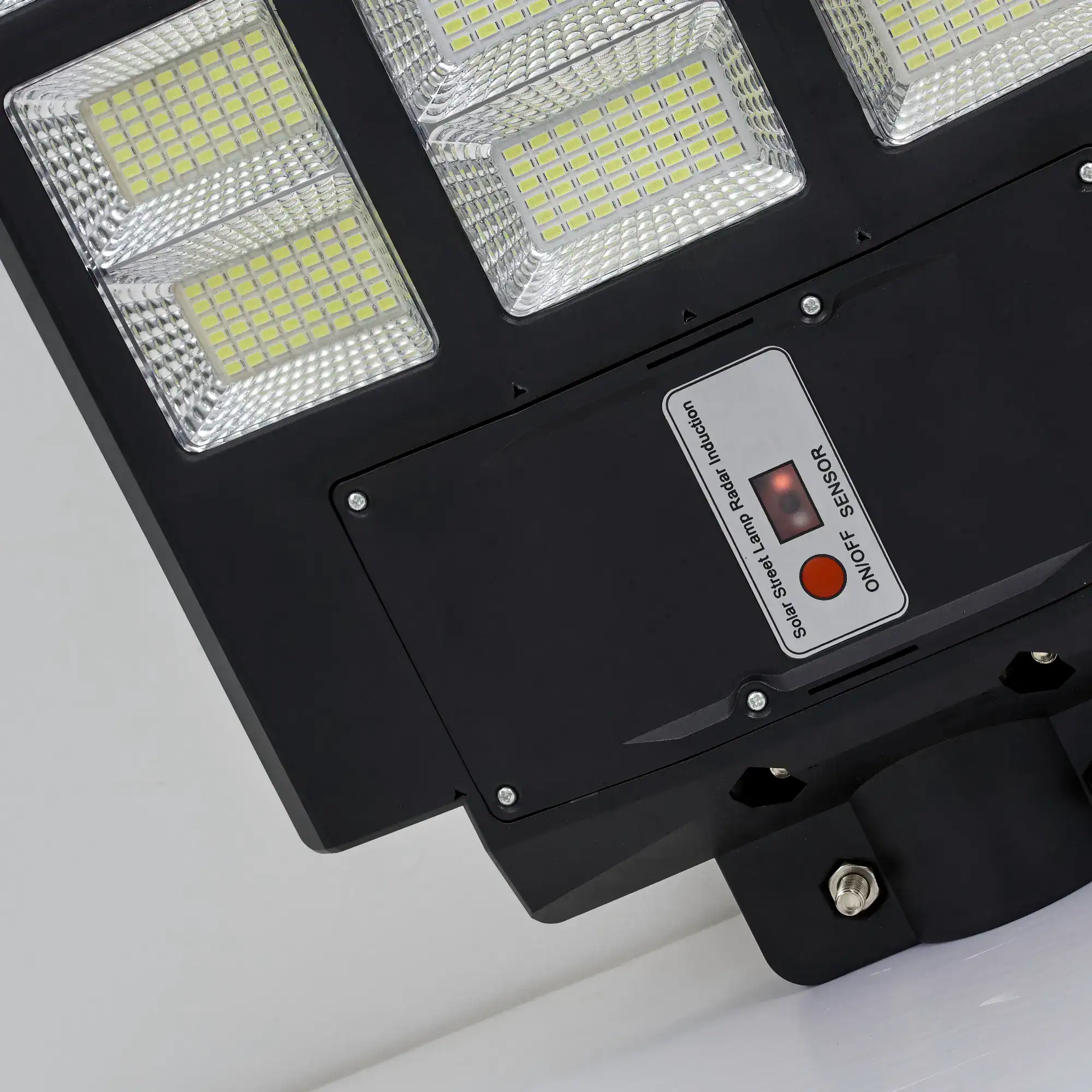

At the core of the BMW series are high-density 5730 SMD chips, with bead counts ranging from 576 to 1,152 depending on the model—delivering industry-leading brightness with remarkable energy efficiency. An integrated radar motion sensor with intelligent dimming functionality optimizes battery usage by automatically adjusting brightness based on activity detection.

The all-in-one integrated design consolidates the solar panel, LED light source, battery, and controller into a single compact unit—eliminating complex wiring and simplifying installation to minutes. The lightweight ABS housing offers excellent weather resistance, impact protection, and corrosion resistance in diverse environmental conditions.

Key Features:

• Multi-head modular design – 6/9/12 heads for scalable coverage

• Dual optical system – Lens + reflector for maximum efficiency and uniformity

• High-density 5730 SMD chips – 576 to 1,152 beads for exceptional brightness

• Radar motion sensor – Intelligent dimming for enhanced runtime

• All-in-one integrated design – No complex wiring, quick installation

• Monocrystalline solar panel (6V) – 15W to 30W options

• LiFePO4 battery (3.2V) – 12AH to 25AH with BMS protection

• ABS housing – Lightweight, weather-resistant, corrosion-proof

• IP65 waterproof – Reliable in all outdoor conditions

• Remote control included – Convenient mode switching

Ideal for: Commercial plazas, parking lots, stadiums, sports facilities, industrial parks, warehouses, and large-scale outdoor areas requiring high-intensity, uniform illumination with motion-activated security.

Specifications Table
