Renz-XSCCTV-Series

solar flood light with integrated security camera

Proprietary dual-battery system – independent power for light & camera

High-brightness 5054 SMD chips – 74 or 150 beads for powerful illumination

12+ hours lighting runtime with 3–4 days backup on cloudy days

7+ days camera standby on a full charge – reliable remote monitoring

3MP HD camera with 4mm fixed lens and F2.0 aperture

Human tracking – automatic motion detection and APP push alerts

Two connectivity options: WiFi (2.4GHz) and 4G (mobile network)

IP66 waterproof – built for all-weather outdoor installation

Product Details

The Xingshuo Solar Security Flood Light represents a significant advancement in integrated solar lighting and surveillance technology. Unlike conventional solar lights with add-on cameras, this system features a proprietary dual-battery architecture independently powering the lighting module and the camera module – ensuring optimal performance for both functions without compromise.

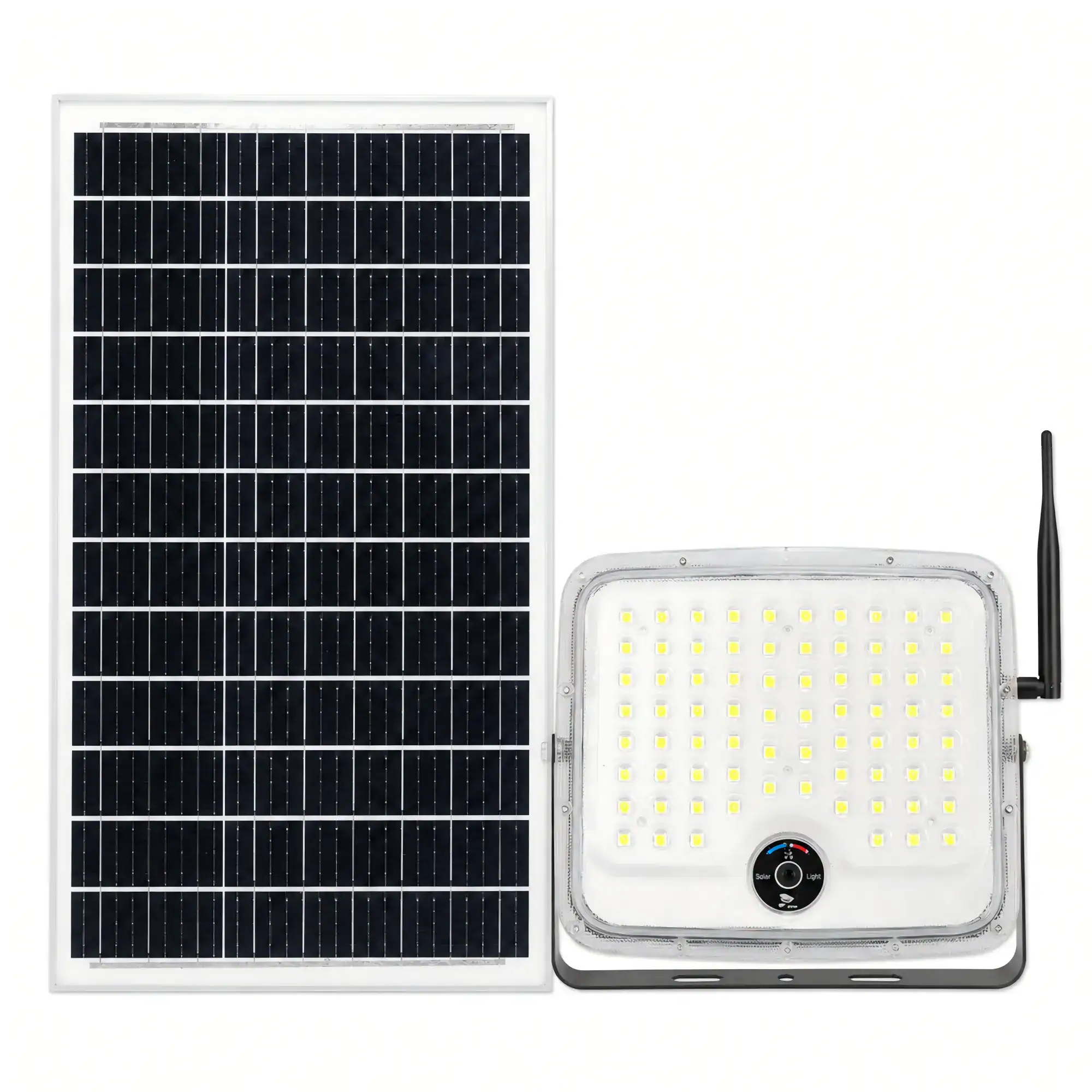

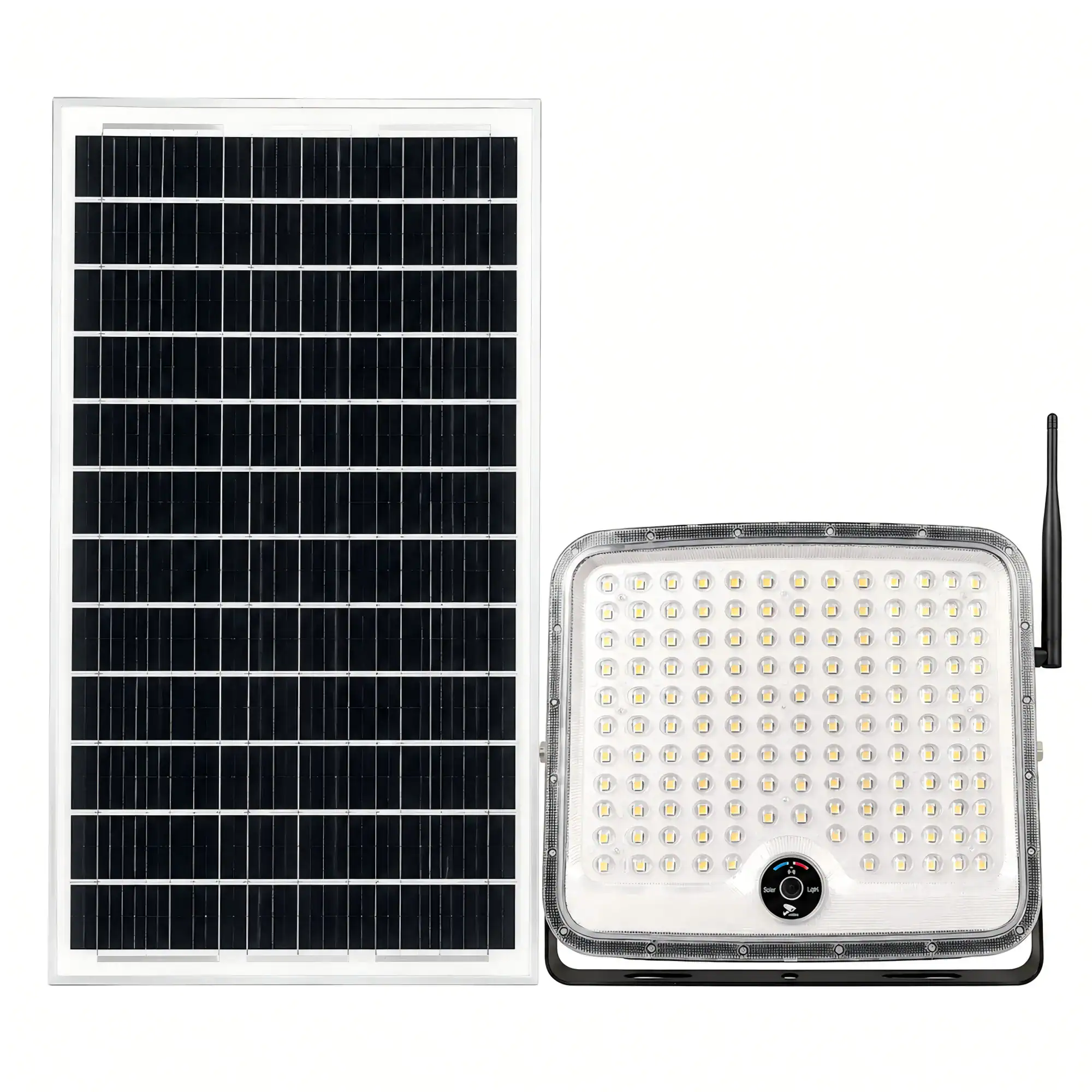

Available in 300W and 500W lighting configurations, each with WiFi or 4G connectivity options, this series offers flexible solutions for residential, commercial, and remote monitoring applications. The high-brightness 5054 SMD chips (74 or 150 beads) deliver powerful illumination, providing over 12 hours of continuous lighting and 3–4 days of backup during cloudy or rainy weather. The dedicated camera battery supports 7+ days of standby on a full charge, ensuring uninterrupted remote surveillance even during extended periods of low sunlight.

The integrated 3MP HD camera features a fixed 4mm lens with F2.0 aperture, offering a horizontal viewing angle of approximately 80° and vertical angle of 45°. Advanced features include human tracking, automatic motion detection with APP push notifications, and support for 8–256GB memory card expansion. The built-in microphone enables audio monitoring, while two-way talk functionality allows for remote communication. The system is managed through the “ToWell” app (international version) or “YouWoKanJia” (China version), providing real-time video streaming and full remote control.

The all-in-one integrated design combines the solar panel, LED light, camera, and dual-battery system into a single weatherproof unit with IP66 waterproof rating, suitable for year-round outdoor installation. The split-type configuration allows flexible positioning of the solar panel for optimal sun exposure.

Key Features:

  • Dual-battery independent system – Dedicated batteries for light (15/25AH) and camera (10AH)

  • High-brightness 5054 SMD chips – 74 or 150 beads for powerful illumination

  • 3MP HD camera – 4mm lens, F2.0 aperture, 80° horizontal viewing angle

  • Human tracking – Automatic motion detection with APP push alerts

  • Dual connectivity options – WiFi (2.4GHz) or 4G mobile network

  • Extended memory support – 8–256GB microSD card (not included)

  • Two-way talk – Built-in speaker for remote communication

  • IP66 waterproof – Reliable in all outdoor weather conditions

  • All-in-one integrated design – Easy installation, no complex wiring

  • Mobile APP control – “ToWell” (international) / “YouWoKanJia” (China)

Ideal for: Residential security, remote properties, construction sites, parking lots, farms, warehouses, building perimeters, and areas requiring both high-intensity illumination and remote video surveillance without grid power.

Specifications Table

ModelConnectivityLED Beads (Qty/Model)Solar PanelLight BatteryCamera BatteryCamera PixelsMemory CardWaterproof
300WWiFi74 beads / 505425W / 6V15AH / 3.2V10AH / 3.2V3MP8–256GBIP66
300W4G74 beads / 505425W / 6V15AH / 3.2V10AH / 3.2V3MP8–256GBIP66
500WWiFi150 beads / 505435W / 6V25AH / 3.2V10AH / 3.2V3MP8–256GBIP66
500W4G150 beads / 505435W / 6V25AH / 3.2V10AH / 3.2V3MP8–256GBIP66
